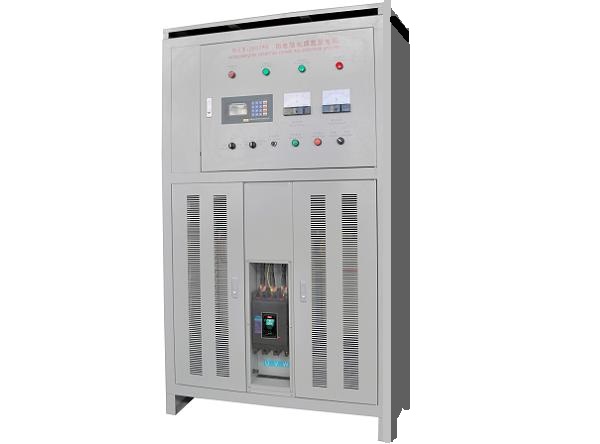

| name:Microcomputer Formation Charge And Discharge Machine |
| Product information£º |
Search Guide:Microcomputer charge discharge machine|Charge discharge|Charger|Discharge|Storage charge discharge
Battery charging|Charging and discharging equipment|Intelligent charge discharge|Multi loop charge discharge|
Single charge discharge
1.The system is controlled by the microcomputer, the working parameters set by the keyboard, LCD display, plus
a large size pointer voltage table, the current table shows the actual working parameters, parameters to see
intuitive, convenient;
2.Set up various types of plate into the process and parameters of the process;
3.with constant current charging, constant voltage charging, constant current limiting voltage discharge,
constant voltage current limiting charging, reverse charging, cycle, static and positive control of the plate
and so on;
4.With over current, over voltage and power off, continue to maintain complex power down protection function;
5.Suitable for various types of battery plate production and battery charging and discharging;
|
|
| Product Parameter £º |
|
Model
|
Input Voltage
|
Charge/Discharge Current
|
Charge/Discharge Voltage
|
Control Mode
|
|
WCF-300350
|
AC 380V¡À10%/50Hz
|
0-300A(order)
|
0-350V(order)
|
Auto/Manual
|
|
WCF-200350
|
AC 380V¡À10%/50Hz
|
0-200.0A
|
0-350V(order)
|
Auto/Manual
|
|
WCF-100350
|
AC 380V¡À10%/50Hz
|
0-100.0A
|
0-350V(order)
|
Auto/Manual
|
|
|
|
