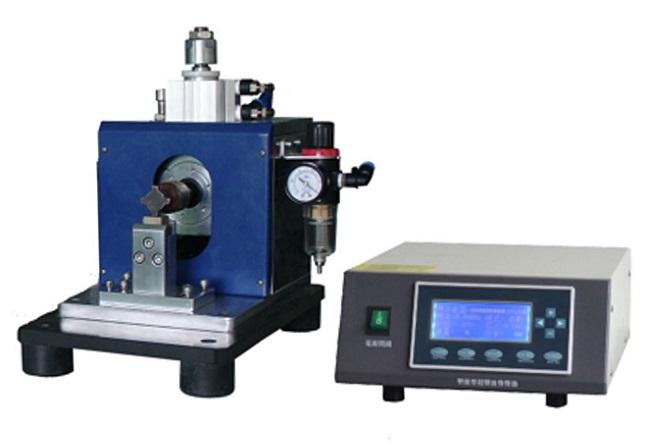

| name:24K Ultrasonic Metal Spot Welder |
| Product information£º |
Search Guide:Ultrasonic metal welding| Metal welding|Ultrasonic equipment |Ultrasonic plastic welding machine|
Plastic welding| Shenzhen ultrasonic plastic welding| Ultrasonic machine| Ultrasonic welding
Overview:Ultrasonic metal welding machine adopts microcomputer control,electronic tuning,frequency LCD,power
adjustable,simple operation,stable and reliable;solid welding,good consistency,welding with welding surface
strong,high strength,beautiful appearance and environmental protection etc.Ultrasonic welding is not only easy
to operate,built-in electronic circuit protection,and safe use,used for metal welding similar,an be implemented
in a single point or multi-point welding of nonferrous metals;This machine is widely used for welding of battery
cathode and multilayer aluminum foil and aluminum sheet. |
|
| Product Parameter £º |
|
Model
|
Output Power
|
Keywords
|
Mode
|
Dimension(mm)
|
Funture
|
|
UMW-2415
|
1500W
|
Electrical
Tuning
|
A
|
560¡Á350¡Á1100
|
Ultrasonic Output Stability
|
|
UMW-2040
|
2000W
|
Self Excited Oscillation
|
B
|
600¡Á430¡Á1600
|
High Power
|
|
Input Power
|
Work Frequency
|
Air Pressure
|
Weld Time
|
Hold Time
|
Horn Trip
|
|
220V/50Hz
|
24KHz
|
4-8KG
|
0-9.9S
|
0-9S
|
15mm
|
Weld Sample:

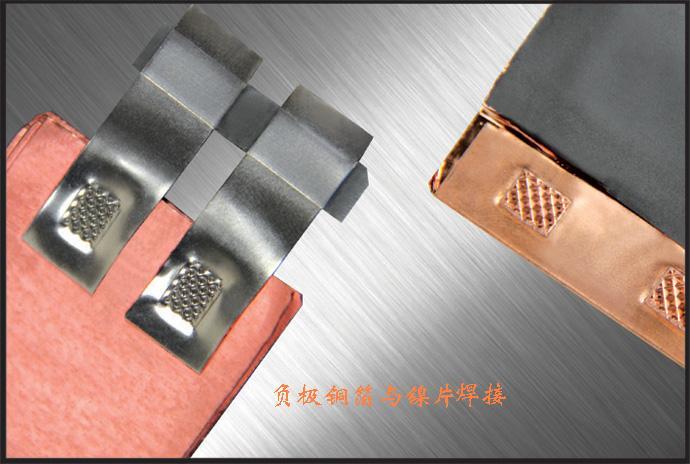

Nagative cooper weld with nickel tabs

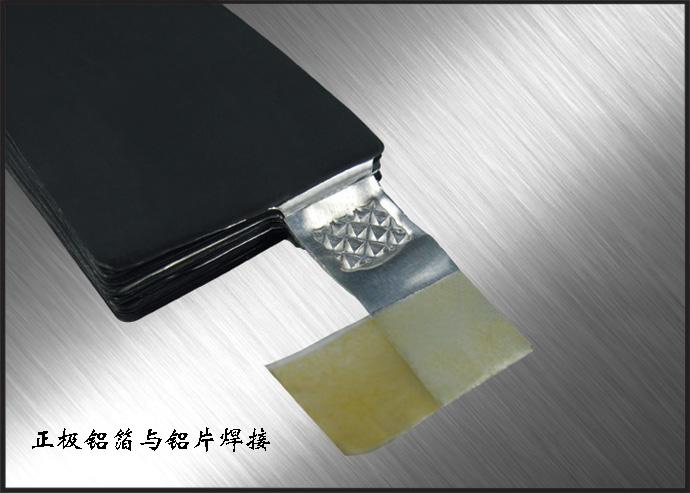

Positive aluminum weld with aluminuml tabs
|
|
|
