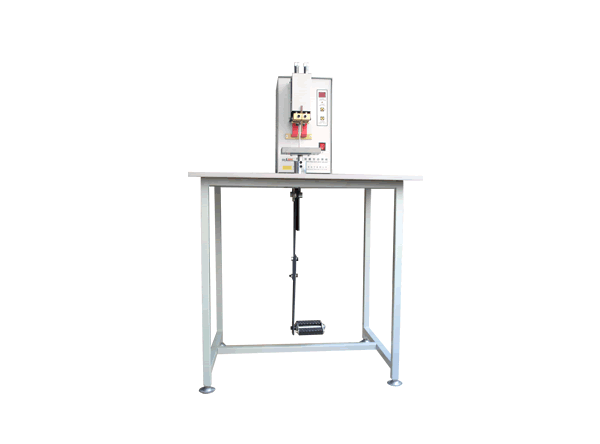

| name:Microcomputer Precision Spot Welder SWA-2216 |
| Product information： |
Search Guide: Automatic power battery spot welder,Lithium battery automatic spot welder,Programmed automatic
spot welder, Power battery pack spot welder, XY axis automatic feed spot welder, Spot welder machine with
programming function
The microcomputer control,the supply voltage automatic tracking compensates,may realize the single
pulse,the double pulse and the multi-pulses welding,each parameter as numerical code establishment,thus
parameter adjustment direct-viewing accurate,the straight line bearing design uarantees the welding the
precision and the duplication,the rack uses the aluminum molding,the disassemblage is convenient,the many
kinds of driving mechanism selects and matches,operation even more personalization.The parameter LED
numerical code demonstr ated that,the control is more precise;The double stylus force inde-pendent may move,
the welding is more reliable;Is suitable in the battery continu ally contact tag welding,the hardware one
side welding. |
|
| Product Parameter ： |
|
Model
|
Power Supply Voltage
|
Output Power
|
Drive form
|
Output signal
|
|
SWA-2216
|
AC220V±10%/50Hz
|
10KVA
|
Pneumatic/Pedal
|
Optoelectronic switch
|
|
Welding current
|
Electrode diameter
|
Electrode adds the pressure
|
Welding power
|
Electrode travel
|
|
0-99
|
∮3
|
0.5-4kgf
|
AC pulse
|
15mm
|
|
|
|
